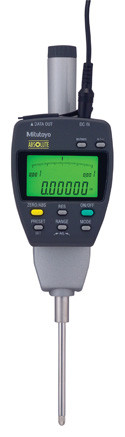

Mitutoyo 543-558A ABSOLUTE Digimatic Indicator with SPC output, ID-F

FEATURES: With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been preset it will not be lost when the power is turned on. GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance. An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching. It enhances the ease of operation in the same manner as a dial indicator. The display range of the analog bar can be changed. With SPC data output. Technical Data Accuracy: Refer to the list of specifications. Resolution: 0.01mm/0.001mm or .00005”/.0001”/.0005”/.001”/0.001mm/0.01mm Display: LCD Length standard: ABSOLUTE electrostatic capacitance type linear encoder Max. response speed: Unlimited Measuring force: 1.8N/2.3N* or less (*50mm range models) Power supply: 9V DC (via AC adaptor) Function Origin-set/Preset, Zeroset, GO/±NG judgment, Max/Min value hold, Runout measurement, Resolution switching, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion (on inch/metric models only) Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error Standard Accessories 526688A: AC Adapter 120v 137693: Lifting Lever Optional Accessories 936937: SPC cable (40” / 1m) 965014: SPC cable (80” / 2m) 21EAA131: RS-232C cable (80” / 2m) 540774: Spindle lifting cable (stroke: .4” / 10mm) 02ACA571: Auxiliary spindle spring for 25mm/1” models* 02ACA773: Auxiliary spindle spring for 50mm/2” models* 264-504-5A: Digimatic Min-processor DP-1VR 543-004-1: Digimatic presetter
